Metal Wall Panel and Cladding Comparisons

A finish swap that changes the wall build-up can mean new structure, drainage details and trades. Start with the question that remains after the project conditions are written down.

Remaining question	Open this guide
304 or 316 stainless for salt-exposed cladding?	304 vs 316 stainless steel cladding
Two metals for the same system?	Aluminum vs steel wall panels
Horizontal steel lap siding or vinyl lap siding?	Metal siding vs vinyl siding
Metal or a stone-faced wall?	Metal cladding vs stone veneer
Metal or painted boards?	Metal cladding vs fiber cement
Metal or a lightweight stone-look sheet?	Metal panels vs flexible stone
What product does MCM name?	MCM cladding meaning

Each comparison has a side-by-side table and three exits: choose A, choose B, or choose neither. The parent map is the metal wall coverings guide.

Comparisons come last on purpose. A table that ignores climate, backup wall, and maintenance staff is entertainment. The Whole Building Design Guide metal panel wall systems framing still applies: you are choosing walls, not chips.

Which comparison answers the remaining question?

Start with aluminum versus steel wall panels if both options are metals. Read aluminum wall panels and steel wall cladding so the table is about installed systems, not coil prices.

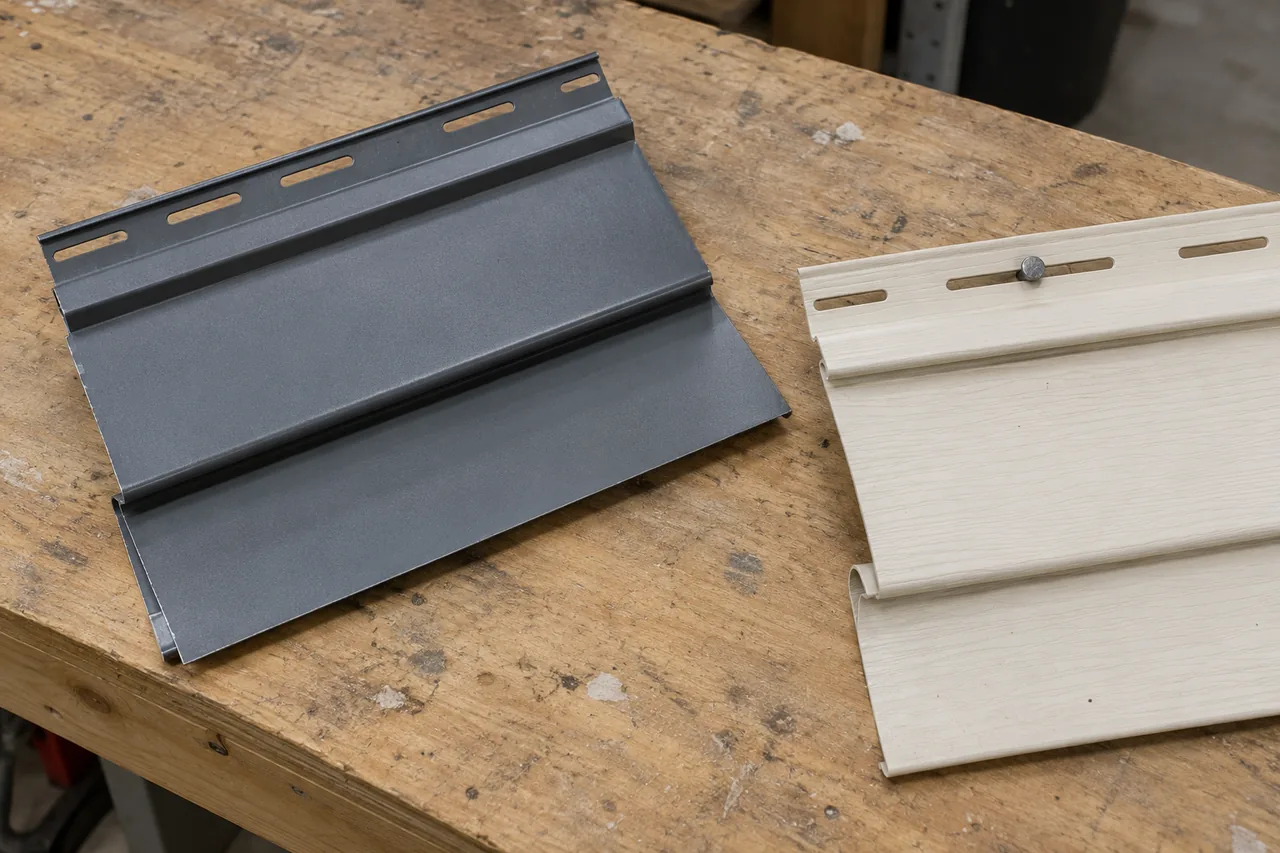

Use metal siding vs vinyl siding when a residential project compares horizontal steel lap siding against rigid or insulated PVC lap siding—both hung to float on slotted nailing hems, but with different end-clearance, cutting, and scratch-repair rules. Use metal versus stone veneer when the other finish is a stone-look enclosure with more weight and different joints. Use metal versus fiber cement when the other finish is a painted or factory-finished board with overlapping weather logic. Use metal versus flexible stone when the other family is a lightweight stone-look sheet rather than a metal skin.

Use what MCM means in cladding when the abbreviation is the confusion. In architectural metal walls, MCM means Metal Composite Material, as defined by the Metal Construction Association. Other industries use the same letters for different products. Write the full material name in the specification before requesting documents.

What to use instead of cladding?

Ask first what the cladding was supposed to do. A cladding skin hangs over a backup wall that already carries the water-resistive barrier, air control and insulation. So “instead of cladding” can mean one of two different moves. Each leads to a different next page.

Move 1: keep a skin, change the family. The wall keeps the same backup and drainage logic. Only the outer material changes. On this site that fork has five comparison pages:

• Slotted residential lap siding in PVC versus prefinished steel: metal siding vs vinyl siding.
• Heavier stone-look enclosure with different joints: metal cladding vs stone veneer.

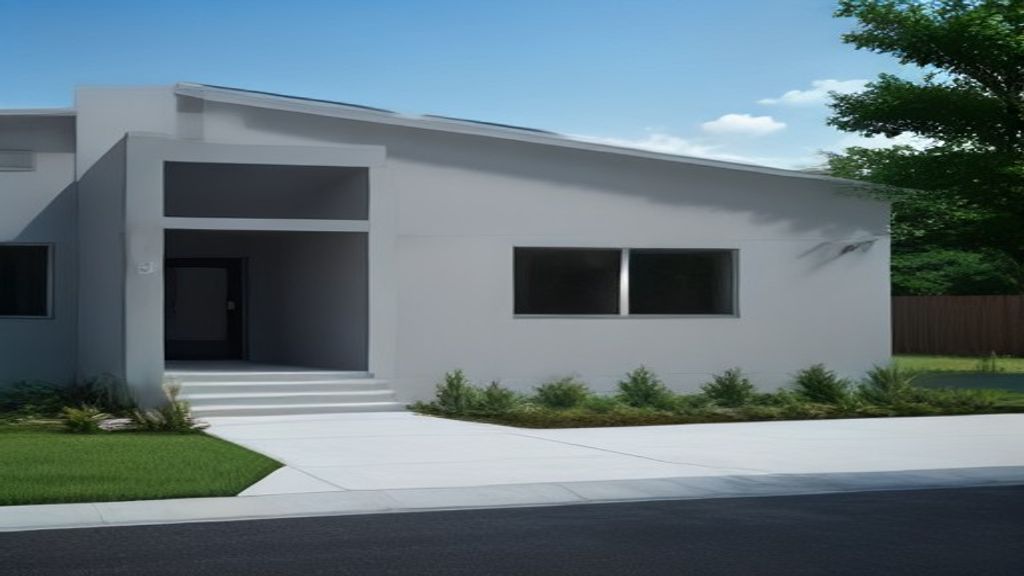

• Factory-finished board with similar overlapping weather logic, priced against repaint and recaulk cycles: metal cladding vs fiber cement.
• Lightweight stone-look sheet instead of a metal skin: metal panels vs flexible stone.
• Still metal, but a different metal: aluminum vs steel wall panels, then the materials hub for stainless, zinc, copper and corten.

Composite-wood boards also show up when people search this question. This publication has no comparison page for them. If one is on your shortlist, judge it with the four checks below and the maker’s own documents, and do not assume metal rules carry over.

Move 2: drop the separate skin. Here the finished face is the wall itself or a coating on it: render over masonry, exposed brick, or exposed concrete. That changes the backup wall, the structure and the trades. It is a different wall design, not a finish swap, and this site does not cover those systems. Take the question back to the wall designer before you compare finishes.

Four checks decide which move fits, and any comparison page should be read against them:

1. Exposure: wind-driven rain, coastal salt, freeze-thaw, impact at grade.
2. Backup wall and load budget: can the existing wall carry rails and a skin, or is the project a repair of the wall itself?
3. Maintenance the owner will actually do: washing, recaulking, repainting, or none.
4. Joints and transitions: windows, base of wall and parapet details have to work with whichever family is chosen.

If the answers still point to a metal skin, use the systems hub to pick a format. If they point away from cladding altogether, “neither” is the result of the comparison, and it is a valid one.

What a comparison page must do

It will not claim that one finish is universally better. Project type, climate, backup wall, and maintenance staff change the answer. Metal-to-metal comparisons stay inside this publication’s subject. Metal-versus-other-finish comparisons mark a boundary without becoming a directory of those other products.

Each page should leave you able to write one of three sentences: choose A because of these conditions; choose B because of these conditions; choose neither because the project actually wants a third family. “Neither” is a valid specification outcome. It often points to zinc, copper, stainless or a non-metal finish that this site does not pretend to sell.

Independence and comparison limits

These are independent editorial comparisons based on cited public documents, rather than tests conducted by this publication. Metal Coverings does not supply or procure cladding. Product suitability, warranties and assembly evidence come from the selected manufacturer and the project design team.

How to use this hub

1. Name interior versus exterior on the applications hub.
2. Shortlist a metal on the materials hub.
3. Shortlist a system on the systems hub.
4. Write the specification limits on the design and specification hub.
5. Open the comparison that matches the remaining fork.
